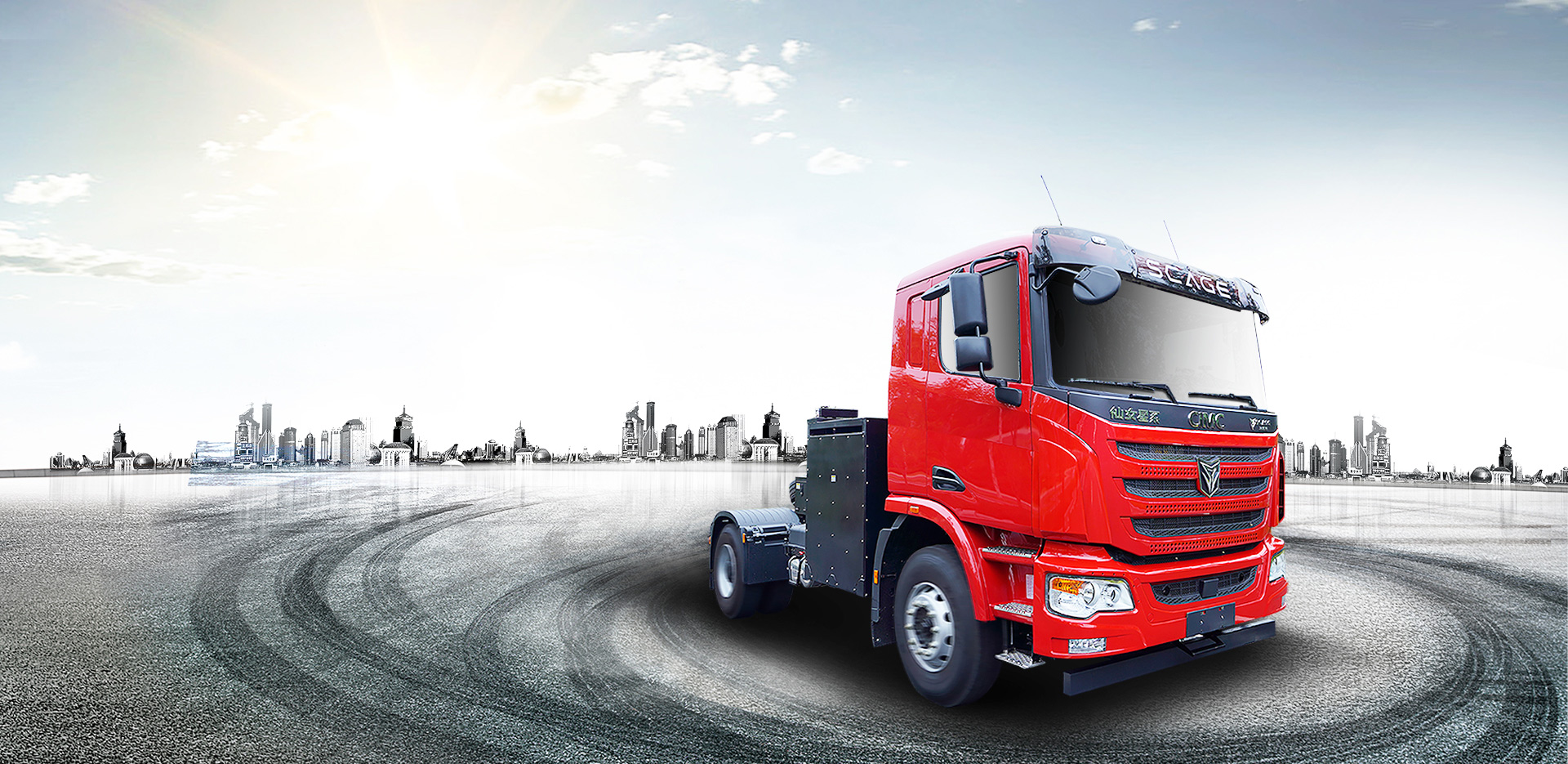

80T EV HEAVY DUTY TRUCK——ANDROMEDA

Outstanding performance

Efficient operation and double revenue

> 400 HP, strengthened body, wheel side deceleration, heavy load 80t, easy operation;

Downhill gentle descent mode, full recovery of braking energy;

Modular design, convenient after-sales;

The integration of charging and changing electricity can meet various scenarios and create the maximum benefits for customers.

Reliable and extraordinary

Once started, never stop;

Experience rigorous "three high" test, reliability test, performance test, user test, etc., and easily deal with a variety of working conditions and environments;

The vehicle frame, electric drive bridge, leaf spring, electric accessories and other important vehicle devices are comprehensively optimized and improved to make the vehicle operation more reliable.

Comfortable and extraordinary

Enjoy relaxation at home;

Automatic gear, easy to control;

Brand new interior, embracing layout, 8-inch LCD screen, parking air conditioner and independent heating;

20 rich and diverse storage spaces;

Remote control door lock, hand turning cab, 220V power supply (USB charging), audio-visual entertainment and other equipment to create a comfortable mobile home for drivers and passengers.

Extraordinary safety

Because life is above all else;

Cage body, meeting European ECE R29 Collision Regulations; The utilization rate of cab high-strength steel plate is as high as 47%;

Can bus control of the whole vehicle, simplify the structure of harness and electrical system, and improve the lasting reliability of circuit and electrical system;

Vehicle full picture monitoring, equipped with United g7-007 intelligent vehicle management system and real-time risk monitoring platform, which can realize the functions of anti fatigue, anti-collision, anti rollover, real-time data acquisition (4G video); Show you the five scene data of operation, safety, power consumption, vehicle and driver in real time to help the team management.

Main configuration parameters of the whole vehicle

4x2 port Neto electric vehicle

Curing configuration item Model tractor
Driving form 4 × 2
Fuel Electric
Wheelbase Electric
Transition radius 7.5m
Frame 300 × 80 × 8 + 5
Suspension More front and more rear
Market Options Motor series Permanent Magnet Synchronous
Motor Model BDM230XS050SK01
Motor Rated / Peak Speed (RPM) 3500/9000
Rated / peak torque of motor (n · m) 250×2 / 420×2
Power battery type Lithium iron phosphate
Total power battery 254
Power battery system voltage (V) 618
System capacity (ah) 412
Number of battery boxes 8
Cooling mode of power battery water-cooling
Electric drive cooling system Electronic fan
Braking form Front drum / rear disc
tyre 12R22.5
Rim Steel
chair Airbag + fixed
Battery type Maintenance free
Unitcom G7 intelligent products Yes (fatigue monitoring)
Auxiliary safety system LDWS+FCW
Battery capacity 180Ah
Electronic brake ABS
Maximum speed limit 88 (regulatory value, SKECH self calibration)
TPMS nothing
Front stabilizer bar have
Door lock Dual remote control + single common
Steering wheel multi-function
Key layout items Battery pack layout Post
Battery arrangement Right position
Variable speed control type Electric control
